High-quality load cells and indicators

We offer various types of MIW load cells. MIW weighing indicators and MIW junction boxes.

Load cells

There are many types of load cells, but they all have the same function—to accurately measure weight on the scale. All load cells take an analog measurement, and then that signal is converted to a digital output either at the load cell, junction box or in the scale indicator.  We recommend MIW load cells:

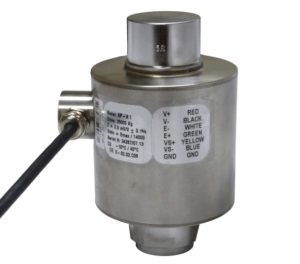

Load cell SP-A

Capacities: 10t – 15t – 20t – 25t – 30t – 35t – 40t – 50t
Applications: Mixers / Hoppers / Silos / Truck Scales, High IP level (IP68-IP69K), ATEX areas, 4 load cells platform
Divisions Up to 4000 divisions OIML-R60
Material  Fully stainless steel
IP IP-69K

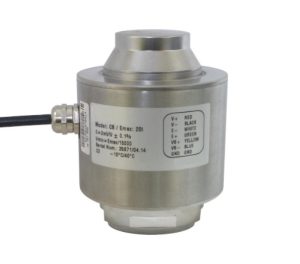

Load cell CS-A

Capacities  10t – 15t – 20t – 25t – 30t – 35t – 40t – 50t – 100t
Applications High resolution (C5-C6). Mixers / Hoppers / Silos / Truck Scales, High IP level (IP68-IP69K), 4 load cells platform
Divisions Up to 6000 divisions OIML-R60
Material Fully stainless steel
IP IP-69K

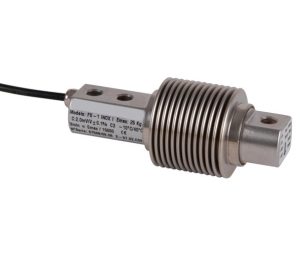

Load cell FX-1

Capacities: 10kg – 15kg – 25kg – 50kg – 100kg – 150kg – 200kg
Applications: Animal Weighing, Mixers / Hoppers / Silos, Dosing systems, Lever System platforms, Multihead weigher, ATEX areas, Bagging Machines, 4 load cells platform
Divisions Up to 4000 divisions OIML-R60
Material Fully stainless steel
IP IP-68

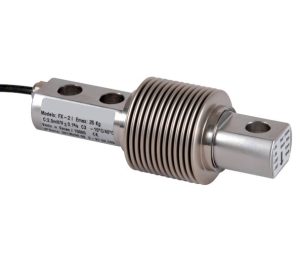

Load cell  FX-2

Capacities 10kg – 15kg – 25kg – 30kg – 50kg – 75kg – 100kg – 150kg – 200kg – 250kg – 300kg – 500kg – 750kg – 1000kg – 1500kg
Applications: Animal Weighing, Mixers / Hoppers / Silos, Dosing systems, Lever System platforms, Multihead weigher. ATEX areas. Bagging Machines. 4 load cells platform
Divisions Up to 4000 divisions OIML-R60
Material Fully stainless steel
IP IP-68





Weighing indicators

We recommend the following MIW weighing indicators:

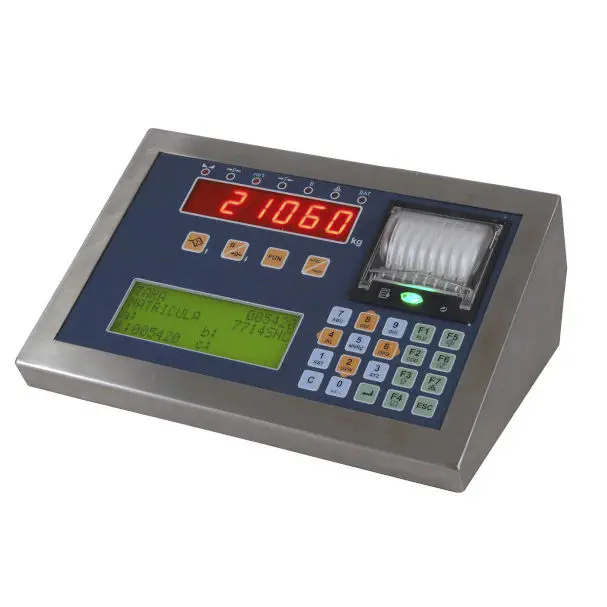

Weight indicator SC20

Alphanumeric truck weighing indicator.

Up to 1000 weighing registers memory.

Listing and tickets from memory.

Double RS232 output: connection to PC and printer

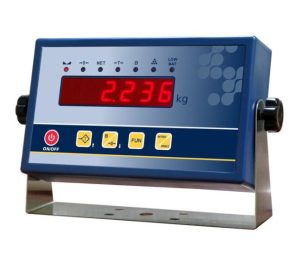

Weight indicator SCA1

The SCA1 is a weight indicator approved according to OIML R76 and EN 45501 (Class III – 10000 divisions)

Finished in ABS or Stainless Steel housing.

It’s available in different versions to suit the needs of each application (see in Versions tab).

RS232 Communications Port and second RS232 or RS485 Communications Port.

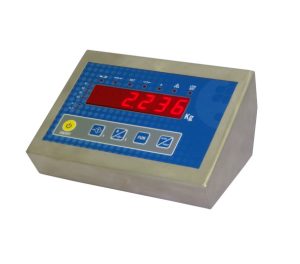

Weight indicator SCA4

The SCA4 is a desktop weight indicator approved according to OIML R76 and EN 45501 (Class III – 10000 divisions)

Finished in Stainless Steel housing.

It’s available in different versions to suit the needs of each application (see in Versions tab).















We offer products made in Poland. Ask for an offer.
